Essenza 3.5″ Round Downlight Family

Essenza® LED Downlights are designed to deliver the features required for your Hotel and Residential High Rise projects or commercial spaces. Available with 12w or 18w LED modules and centered around the outputs of traditional MR-16s, the Essenza is perfect for your lighting needs in these areas. The shallow frame (only 3-1/8″ plenum depth) is universal to accept either round or square trims. Trims available include Downlight, Adjustable Accent, Pinhole, Wall Wash and Lensed Shower trims, giving designers the ability to complete any design scheme. Standard ELV or Triac dimming ensures you are ready to meet today’s energy codes.

Products marked with PoE logo will be compatible for use with PoE, consult factory for compatible systems.

Features & Benefits

Wattage

18 max

Lumen Output

1,548 max

Candle Beam Center Power (CBCP)

13,230 max

Color Temp (CCT)

2200K, 2700K, 3000K, 3500K, 4000K, Class A (Full Gamut), Crisp White (Full Gamut), Dim to Warm

Color Rendering Index (CRI)

80+, 90+

Technology

control poe color comfort dimtowarm

Fixture Modification Request (EDR)

Content & Downloads

Product Technology Aperture Size Trim / Trimless Wattage Delivered Lumens SPEC Sheets IES Files REVIT Files Install Sheets

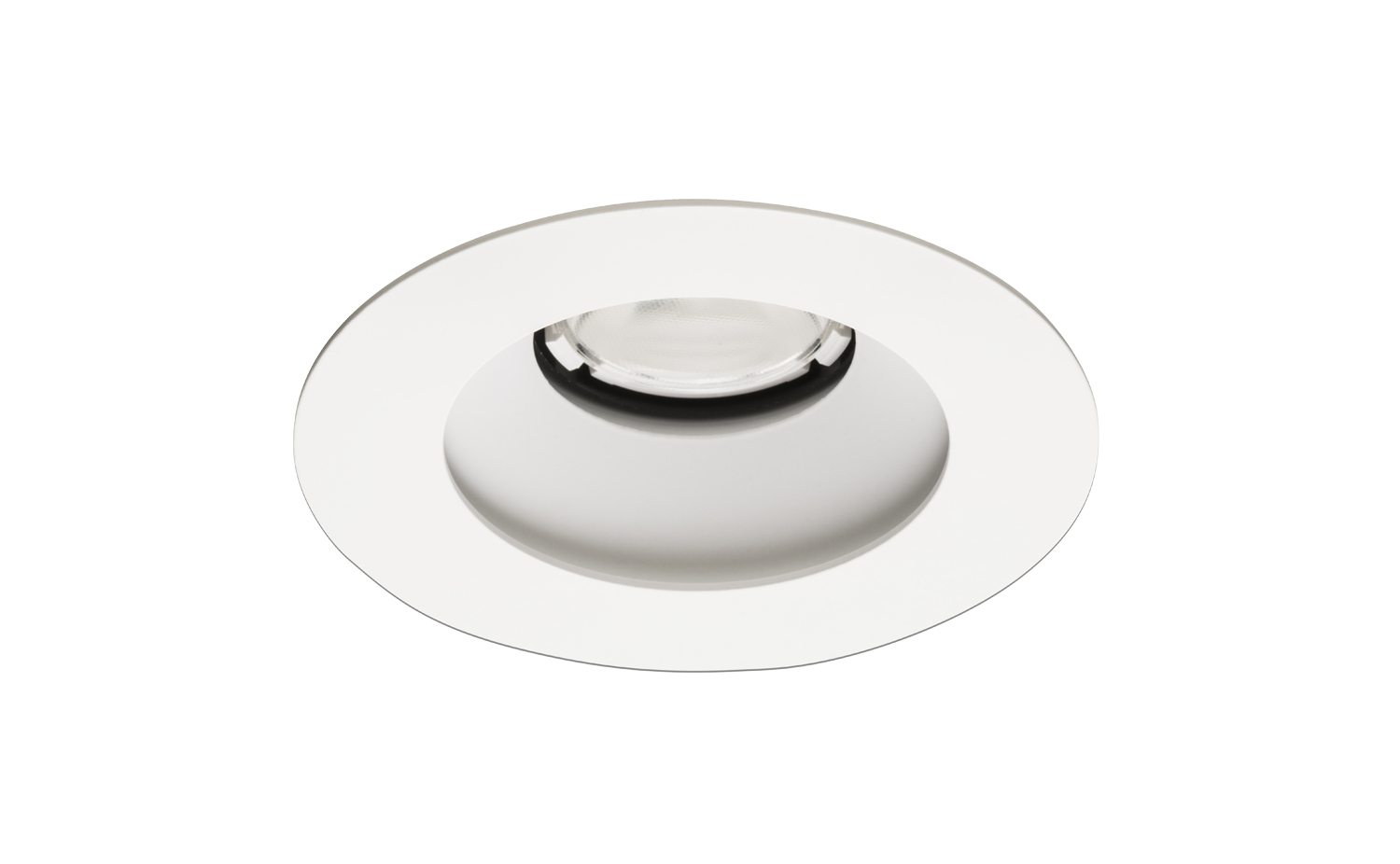

Downlight control poe color comfort dimtowarm 3.5" Y / Y 12, 18 1,548 max
Adjustable control poe color comfort dimtowarm 3.5" Y / Y 12, 18 1,398 max
Pinhole control poe color comfort dimtowarm 3.5" Y / Y 12, 18 1,548 max

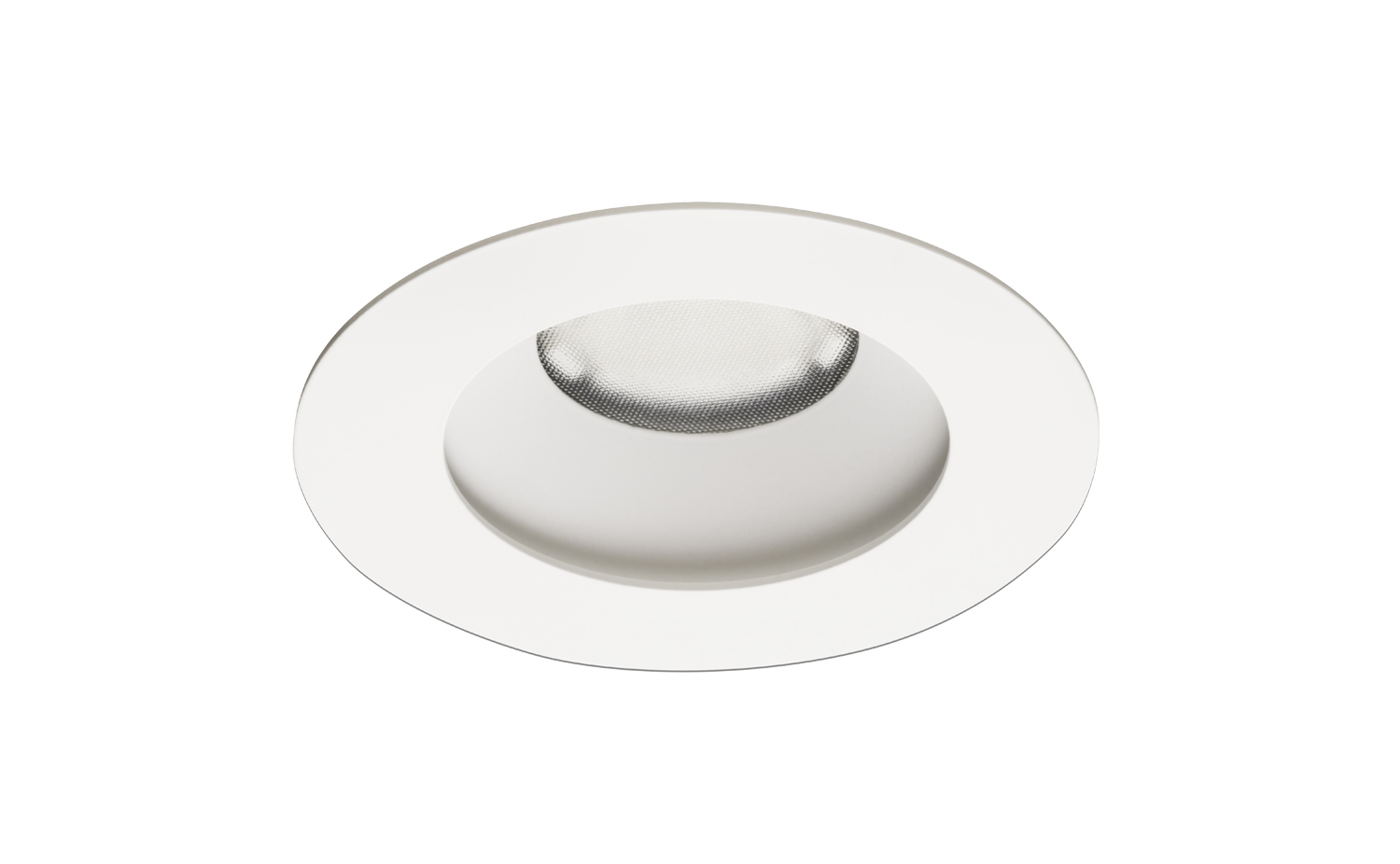

Shower control poe color comfort dimtowarm 3.5" Y / N 12, 18 964 max

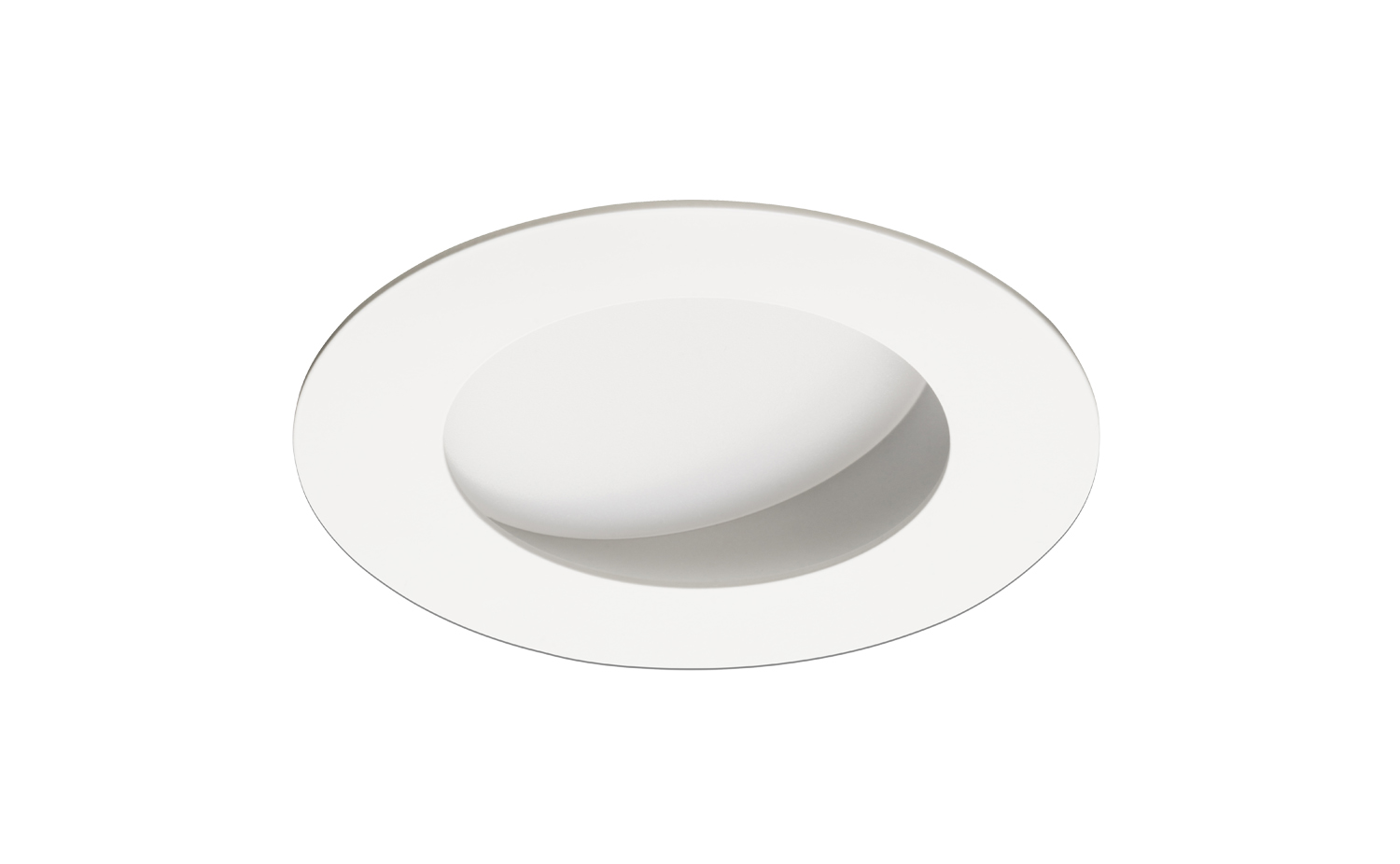

Lensed Wall Wash control poe color comfort dimtowarm 3.5" Y / Y 12, 18 787 max
